The Ultimate Guide to Torque Wrenches: Types, Selection, Accuracy & Calibration

A single over-torqued bolt can warp a flange, causing leaks in high-pressure pipelines. An under-torqued joint in a wind turbine may trigger catastrophic fatigue failure. Precision torque application isn’t optional—it’s the backbone of structural integrity in aerospace, energy, and automotive industries. This guide demystifies torque wrench technologies, selection criteria, and calibration protocols to prevent costly failures.

I. Types of Torque Wrenches: Power, Precision & Applications

1. Hydraulic Torque Wrenches

How They Work:

The working principle of the hydraulic torque wrench is based on Pascal’s law (hydrostatic transmission principle). The hydraulic system amplifies the pressure on the small area piston into a large torque output of the wrench drive component. Its core structure consists of a hydraulic pump station, a high-pressure hose, a wrench body (including cylinder/piston) and a reaction force arm. The electric/pneumatic pump station pressurizes the hydraulic oil and transports it to the hydraulic cylinder of the wrench body through a high-pressure hose, driving the hydraulic cylinder piston, the piston pushes the ratchet mechanism, and drives the square head drive sleeve to rotate the bolt.

Advantages:

• High torque output and precise control: The maximum torque can reach 140,848 Nm (about 103,900 lbf·ft), far exceeding manual or electric tools, and can easily handle large bolts (such as ≥1 inch specifications); the repeatability is ±3%, ensuring that the bolt preload meets strict standards (such as API 6D, aviation manufacturing), reducing equipment failures caused by insufficient torque or overload (according to statistics, 60% of equipment failures are related to bolt problems).

• Efficient and labor-saving, improving work safety: hydraulic drive replaces manpower, and can be operated by one person, reducing labor intensity, especially suitable for high altitude and narrow spaces (such as engine compartments, pipeline flange gaps). The reaction arm design can locate the fulcrum 360° to prevent the tool from slipping and reduce the risk of work-related injuries.

• Adapt to complex working conditions: The drive wrench has strong versatility and covers a variety of bolt specifications with the sleeve; the hollow wrench is thin and suitable for scenes with small bolt spacing and long exposed threads (such as double nuts and areas near equipment walls). Resistant to extreme environments, some models support a temperature range of -20°C to 40°C and are ATEX certified (such as the Atlas Copco TF series), suitable for hazardous areas such as petrochemicals and mines.

• Modular and lightweight design: The fuselage is made of aviation aluminum-titanium alloy, which is 30%~50% lighter (such as the TF10 model at 34.99 lb) and easy to carry. The quick-connect hose (up to 100 meters) supports remote operation, and the pump station can be driven electrically or pneumatically, which is highly flexible.

Limitations:

• The system is complex and has high maintenance costs: it needs to be equipped with hydraulic pumps, high-pressure oil pipes, sleeves and other components. The initial purchase cost is much higher than that of conventional tools (for example, the price of professional-grade sets can reach tens of thousands of dollars). The hydraulic oil needs to be replaced regularly (100 hours for the first time and every 500 hours thereafter), and the cleanliness requirements are high. Contamination can cause seal failure or reduced accuracy.

• Operation space and portability limitations: Although the hollow wrench is compact, the overall system (including the pump station) is large in size, and equipment needs to be transported for field operations. The length of the oil pipe affects efficiency: Extra-long hoses (such as >50 meters) may increase pressure loss, and high-pressure pipes need to be customized.

• Professional training and usage threshold: It requires dedicated personnel to operate and maintain. For example, the synchronous system requires multiple wrenches in parallel to achieve parallel closure of flanges. Improper operation can easily lead to gasket failure and leakage.

• Noise and chemical risks: The noise of the pump station can reach 70 dB(A), and some products contain harmful substances such as lead.

• Environmental adaptability challenges: The viscosity of the hydraulic oil increases at low temperatures, which may be difficult to start (unless low-condensation hydraulic oil is used. Frequent heat dissipation is required in high-temperature environments, otherwise the increase in oil temperature will cause seal aging.

2. Pneumatic torque wrenches

How They Work:

Pneumatic torque wrenches convert compressed air energy into high-torque rotational force through a pneumatic motor.

Advantages:

• Explosion-Proof & Safe:No electrical sparks (intrinsically safe for ATEX Zone 1/Class I Div 1 hazardous areas).

• Lightweight & Compact:Aluminum housings reduce weight (2–10 kg) vs. hydraulic tools, ideal for overhead/confined spaces.

• High Speed & Efficiency:Operates at 5,000–8,000 RPM (input), enabling rapid bolt tightening (e.g., 10 sec/M30 bolt).

• Temperature Tolerance:Performs reliably in -20°C to 60°C without fluid viscosity issues.

• Cost-Effective:Lower upfront cost vs. hydraulic systems (basic models: $500–$2,000).

Limitations:

• Limited Torque Precision:Accuracy typically ±10–25% due to air pressure fluctuations (vs. hydraulic’s ±3%).

• Extreme Noise:Operates at 95–110 dBA (mandates hearing protection).

• Compressed Air Dependency:Requires dry, clean air supply; moisture/oil contamination damages vanes.Air compressor must sustain ≥50 CFM for high-torque models.

• Lower Max Torque:Practical limit ~15,000 Nm (vs. hydraulic’s >100,000 Nm).

• Inconsistent Output:Torque varies with hose length/regulator drift; frequent recalibration needed.

• Vane Wear:Motor vanes degrade over time (replace every 200–500 hours under heavy use).

3. Battery Powered Torque Wrench

How They Work:

Cordless torque wrenches convert battery-supplied electrical energy into controlled rotational torque through an integrated electromechanical system

Advantages:

• Portability & Flexibility:No cords/hoses; operates in remote sites (e.g., wind turbine nacelles, bridges)。Lithium batteries (e.g., 28V, 5Ah) support 4–8 hours of continuous use with fast charging (40–60 min).

• High Precision & Repeatability:±3% torque accuracy (vs. pneumatic’s ±25%), critical for aerospace/automotive bolting.Digital preset/readback avoids manual conversion errors.

• Efficiency & Ergonomics:BLDC/PMSM motors achieve >85% efficiency, reducing heat and extending runtime (vs. brushed motors).Lightweight (2–10 kg), 360° rotatable handle, and low vibration enhance safety in confined spaces.

• Smart Features:Data logging (e.g., torque/time stamps for ISO audit trails).Self-diagnostics, low-battery alerts, and automatic reversal to prevent jamming.

• Reduced Noise:Operates at 65–80 dB(A) (vs. pneumatic’s 95–110 dB(A)), minimizing hearing protection needs

Limitations:

• High Initial Cost:Premium models (e.g., German/Japanese brands) cost $1,500–$5,000, 2–3× more than hydraulic/pneumatic tools

• Battery Limitations：Performance drops below 0°C; batteries degrade after 500+ cycles, requiring costly replacements.Weight penalty: High-torque models (e.g., 10,000 Nm) need large batteries, increasing bulk.

• Torque Range & Speed:Max torque ≤15,000 Nm (vs. hydraulic’s 140,000 Nm), unsuitable for ultra-heavy applications.Slower than pneumatic tools for high-RPM tasks (e.g., 30–100 RPM output)

• Calibration Dependency:Requires bi-annual calibration to maintain ±3% accuracy; sensor drift risks under/over-torquing.

• Environmental Sensitivity:IP54-rated models resist dust/moisture but avoid immersion; electronics vulnerable to impact damage

Comparison with Competing Technologies

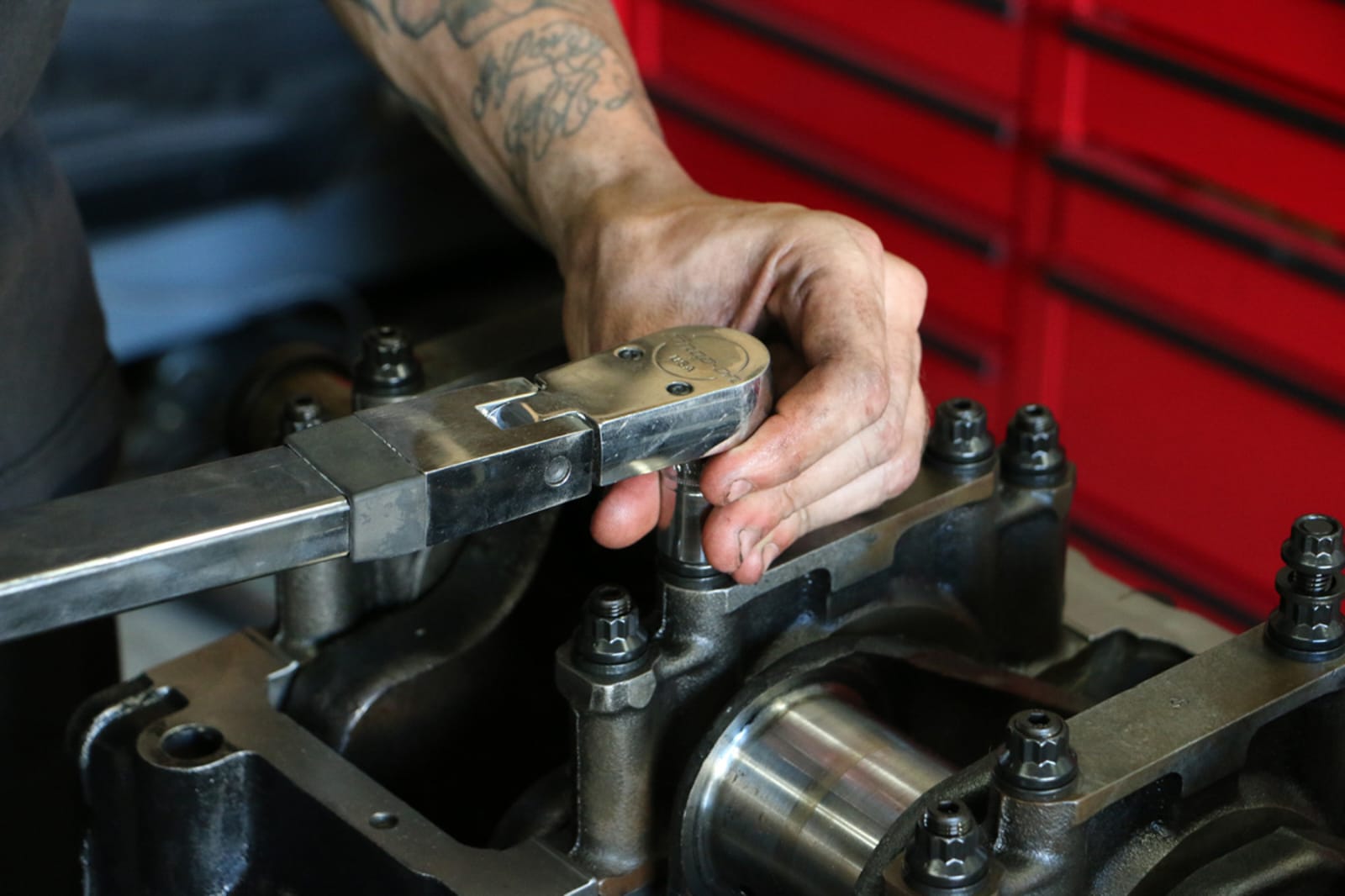

1. Manual Torque Wrenches

• Click-Type: Audible “click” at set torque (±4% accuracy). Example: NORBAR’s ISO 6789-certified wrenches.

• Beam-Type: Visual scale readout (low cost; ±5% accuracy).

• Deflecting Beam: No spring relaxation issues; minimal recalibration.

Technical Comparison

5.Specialized Variants

Rail Bolt Wrenches: Petrol-powered (e.g., NLB-300 for 1,100 N•m railway bolts).

II. How to Choose a Torque Wrench: 5 Critical Factors

1.Torque Range & Accuracy

• Automotive: 50–300 N•m (±4% acceptable).

• Energy Sector: 2,000–44,000 N•m (±1–3% required).

2.Drive Size & Geometry

• 1/2″ square drive: Common for trucks/machinery.

• 1″ drive: Industrial flanges.

3.Workspace Constraints

• Low-profile hydraulic heads vs. bulkier electric models.

4.Power Source Tradeoffs

1. Total Cost of Ownership

Include calibration fees ($75–$200/session) and expected lifespan (e.g., hydraulic: 10+ years).

III. How to Tell if a Torque Wrench is Accurate

Warning Signs:

• Inconsistent readings during sequential bolting (>±5% variation).

• Physical damage: Bent beam, stuck adjustment collar.

• Failure to “click” or slip at set torque (manual types).

Validation Tests:

• Use a calibrated master torque tester (traceable to NIST).

• Perform a clockwise vs. counterclockwise test – deviations >3% indicate issues.

• Check digital models for error codes/battery health (e.g., SMG’s self-diagnostics).

IV. Torque Wrench Calibration: Protocols & Frequency

Calibration Process

1.Test at 20%, 60%, and 100% of tool’s range using dead-weight systems.

2.Issue ISO 17025-compliant certificates (e.g., NORBAR’s accredited labs).

When to Calibrate?

Storage Tip: Always set manual wrenches to lowest torque to prevent spring fatigue.

V. Top Torque Wrench Brands Compared

Conclusion: Precision is Non-Negotiable

Choosing the right torque wrench hinges on application criticality, workspace constraints, and compliance needs. For heavy industrial torque (>10,000 N•m), ULTPRE’s hydraulic systems deliver unmatched power-density. For mobility-focused teams, SMG’s battery-electric wrenches balance intelligence and portability. Remember: annual calibration isn’t a cost—it’s insurance against joint failure.
